Razor Barbed Wire Machine

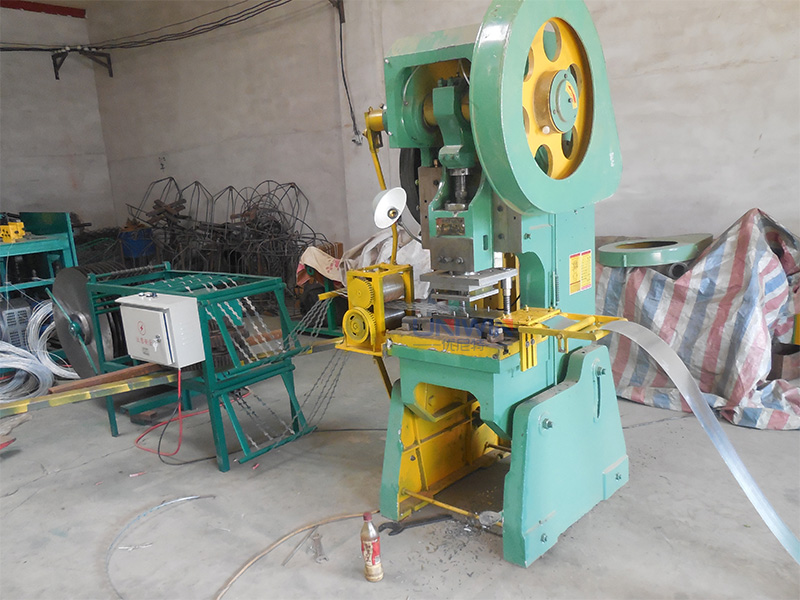

Automatic Razor Barbed Wire Machine

The razor barbed wire machine is an efficient and professional equipment specially used for producing razor barbed wire. This automatic razor barbed wire machine combines multiple mechanical equipments and uses a punching process to stamp the steel strip into a sharp razor shape. Then, the razor-barbed steel strip is tightly wrapped on the high-strength galvanized steel wire through a cold pressing process to produce a razor barbed wire with a solid structure and sharp barbs.

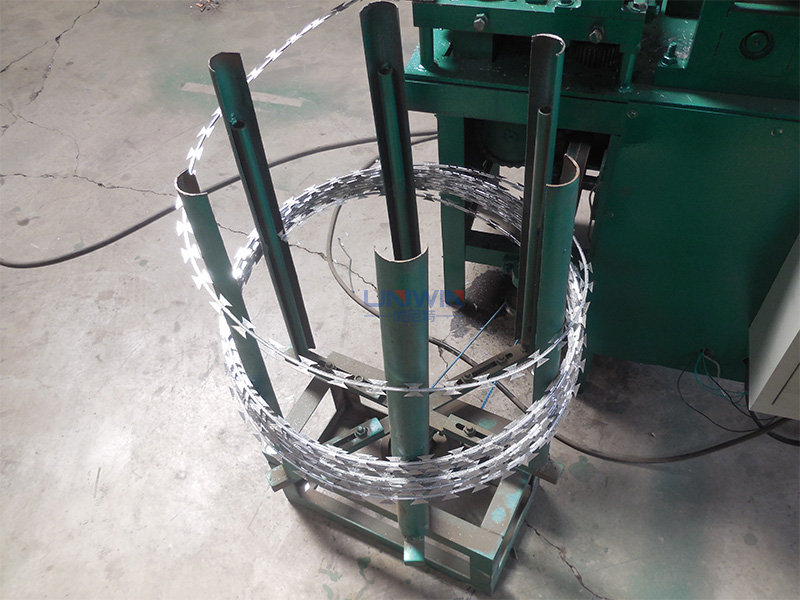

Razor Barbed Wire

Razor barbed wire has a strong blocking effect and is difficult to climb or cut. It is widely used in high-security areas such as military facilities, prisons, border protection, and industrial sites. It is made of galvanized or stainless steel materials, has good corrosion resistance, and can be used long in harsh outdoor environments. At the same time, razor barbed wire is easy to install and has low maintenance costs. Due to its excellent protection effect, it is also widely used in factories, warehouses, and high-end residential areas to provide long-lasting and efficient safety protection.

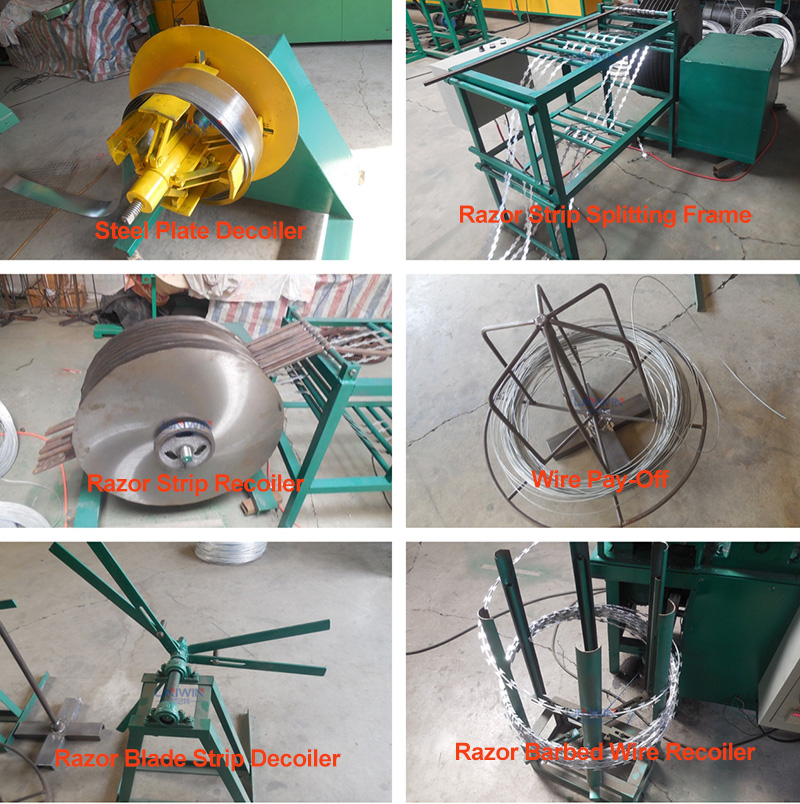

Razor Barbed Wire Machine Parts

The automatic razor barbed wire machine is mainly composed of two Razor Steel Strip and Wire Assembly Machines and a Main Razor Blade Punching Machine, as well as auxiliary equipment such as a Steel Plate Decoiler, Razor Strip Splitting Frame, Razor Strip Recoiler, Razor Blade Strip Decoiler, Wire Pay-Off, and Razor Barbed Wire Recoiler. The functions of each part are clearly divided and work together to ensure the efficient production of razor barbed wire.

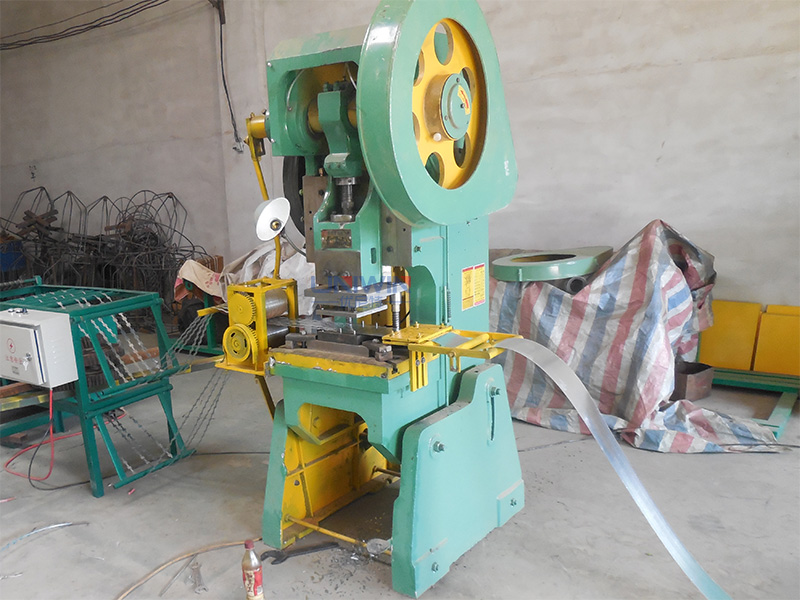

Main Punching Machine

• Function: Responsible for punching the steel plate into a blade steel strip with sharp barbs.
• Dimensions: 1300×1100×2000mm
• Equipment: Using the JB-23 model, the pressure is 25t, the maximum speed can reach 100 RPM, and the power is 2.2kw.
• Production Capacity: The main punching machine can punch out nine steel strips at a time, producing about 80kg of steel strips per hour. The razor length is 22mm, and the steel strip thickness is 0.5mm.
• Mold Customization: The punching mold can be customized according to demand, and the razor length is 25mm, 22mm, 15mm, 11mm, and other specifications.

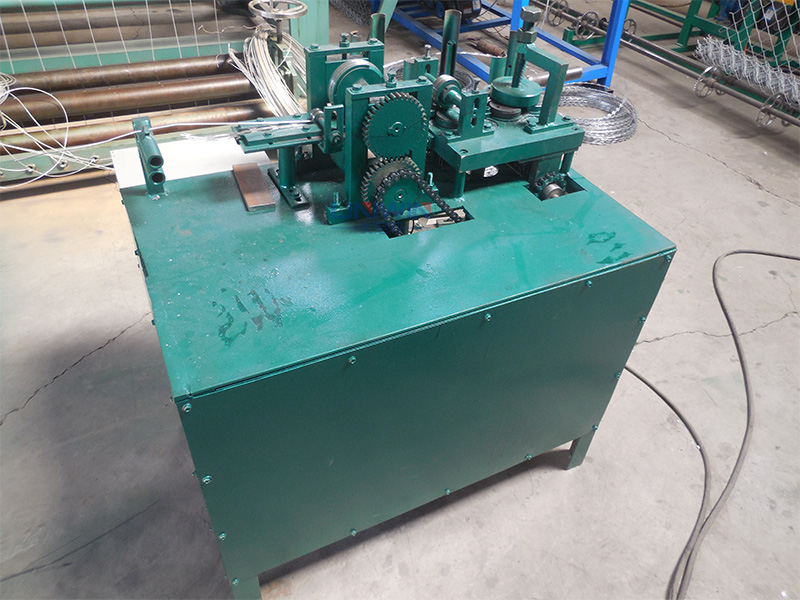

Razor Barbed Wire Forming Machine (Razor Strip and Wire Assembling Machine)

• Function: Wrap high-strength steel wire with the stamped razor steel strip.
• Dimensions: 930×580×1020mm
• Equipment: The forming machine is equipped with a 1.1kw motor with adjustable speed and a linear speed of 16 meters per minute.
• Production Capacity: The forming machine can produce 50 kg of razor barbed wire per hour.
• Diameter Adjustment: The diameter of the razor barbed wire can be adjusted according to demand, ranging from 450mm to 980mm.
