Plastic Strip Collated Screw Assembly Machine

Model: NCS-SJ41
Voltage: Single-Phase AC220V
Frequency: 50/60Hz
Power: 5.5KW
Working Speed: 1040pcs/min (adjustable)
Screw Size: Ø3.8-4.0mm, L25-41mm
Machine Dimension: 3730x2167x1698mm

Product Details

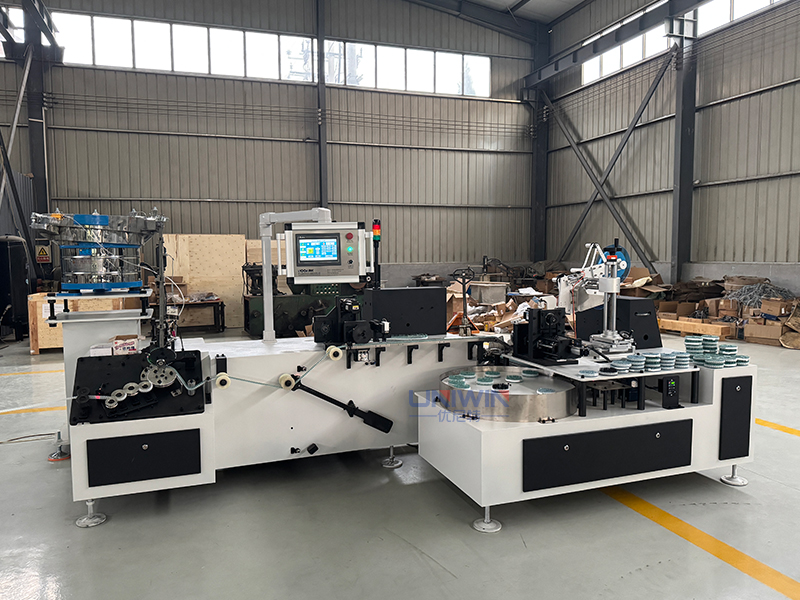

Efficient Plastic Strip Collated Screw Assembly Machine

collated screw assembly machine

The plastic strip collated screw assembly machine is an efficient piece of automated equipment that can accurately assemble screws with a diameter of 3.8-4.0mm and a length of 25-41mm with plastic strips. After manual winding, the finished plastic strip collated screws are suitable for the efficient use of plastic collated screw guns. The plastic strip is made of PE material, offering excellent toughness, wear, and impact resistance, making it durable in high-intensity work environments and resistant to breakage or damage. Its flexibility ensures that the screws are firmly combined with the plastic strip and maintain the continuity of the strip, ensuring smooth feeding of the screws in the collated screw gun. Plastic strip collated screws usually have two angles of 0° and 15°, and you can customize the collated screw assembly machine according to your needs.

Parameter of Collated Screw Assembly Machine for Common 0° Plastic Strip Collated Screws

ItemSpecification
ModelNCS-SJ41
VoltageSingle-Phase AC220V
Frequency50/60Hz
Power5.5KW
Working Speed1040pcs/min (adjustable)
Screw SizeØ3.8-4.0mm, L25-41mm
Air Pressure0.8-1.0Mpa

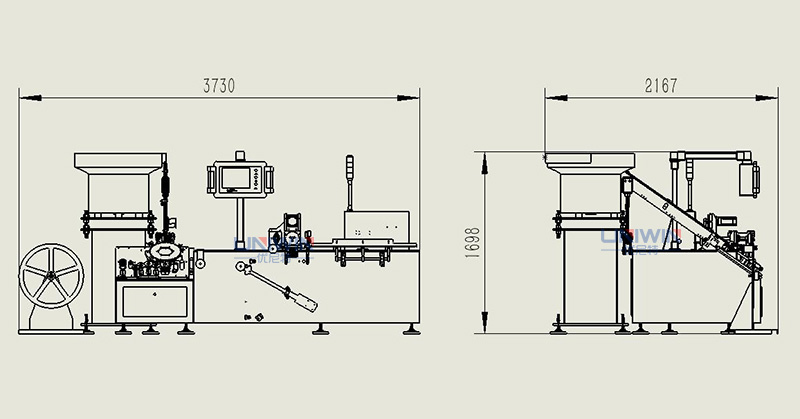

Machine Dimension3730x2167x1698mm

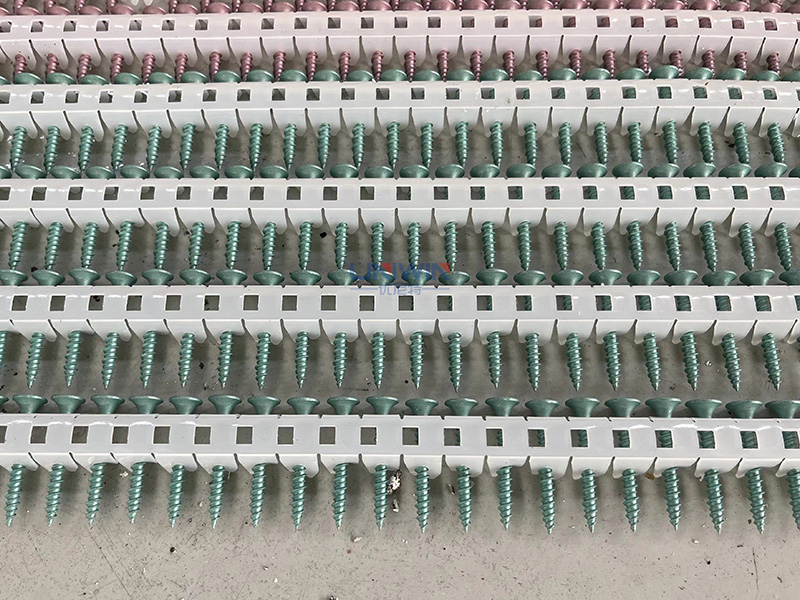

The Finished Collated Screws

plastic strip collated screwsplastic collated screw

Collated Screw Plastic Strips

collated screw plastic strips

0° and 15°Plastic Strip Collated Screws

0° and 15° collated screws
